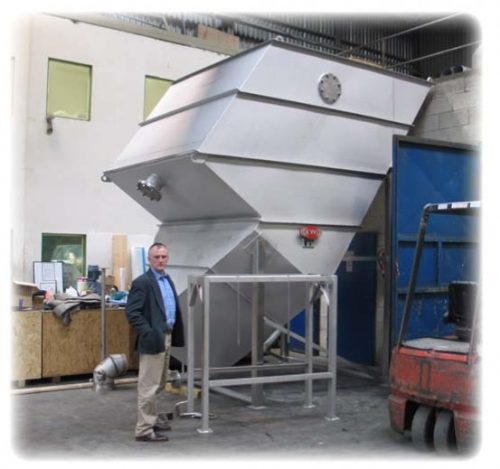

Well proven lamella sedimentation technology. Stainless tank with inclined plastic plates that can be removed individually for cleaning or replacement.

Main advantages:

– Lower capital cost than conventional settlement clarifiers.

– Smaller foot print than conventional settlement clarifiers.

– Stainless tank delivered in one piece to reduce site construction time.

– Can be supplied with integral flocculation tank & mixer.

– Large solids hopper to increase sludge consistency by compaction.

Main applications:

– Suitable for all applications where sedimentation is the preferred technology.

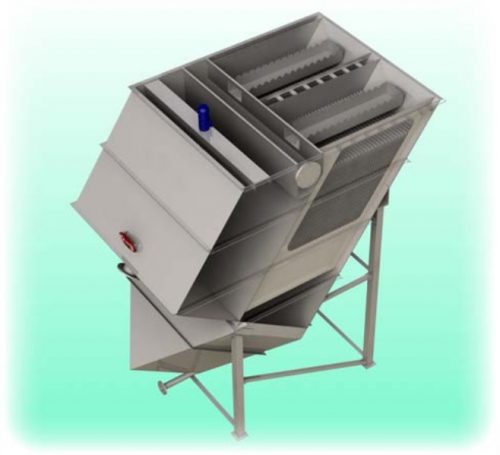

The KWI SEDILAMELLA comprises a stainless tank in which individual plastic plates are supported and inclinedat the optimum angle of 60°. Two different models are available with either a 50 mm or 80 mm gap between theplates and the choice of model depends on the application.

The capacity depends on the settling velocity of the particles to be removed. The size of the sludge collectionhopper is maximised in the KWI design to allow sludge thickening by compression and reduce the length of thetime the sludge discharge pump needs to run.
